Population density affects sexual selection in an insect model
Part 1: Analyses on the effect of the treatment on contact rates
Lennart Winkler1, Ronja
Eilhardt1 & Tim Janicke1,2
1Applied Zoology, Technical University Dresden
2Centre d’Écologie Fonctionnelle et Évolutive, UMR 5175,
CNRS, Université de Montpellier
Last updated: 2023-05-04
Checks: 7 0
Knit directory:
Density_and_sexual_selection_2023/
This reproducible R Markdown analysis was created with workflowr (version 1.7.0). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20210613) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version fe2f665. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .Rhistory
Ignored: .Rproj.user/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown (analysis/index2.Rmd) and HTML
(docs/index2.html) files. If you’ve configured a remote Git
repository (see ?wflow_git_remote), click on the hyperlinks
in the table below to view the files as they were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | fe2f665 | LennartWinkler | 2023-05-04 | wflow_publish(all = T) |
| html | af34366 | LennartWinkler | 2023-04-27 | Build site. |
| Rmd | e4a0f09 | LennartWinkler | 2023-04-27 | wflow_publish(all = T) |
| html | 6abeaab | LennartWinkler | 2023-04-20 | Update index2.html |
| html | b81114e | LennartWinkler | 2023-04-20 | Build site. |
| Rmd | fe8c52c | LennartWinkler | 2023-04-20 | wflow_publish(all = T) |
| html | fe8c52c | LennartWinkler | 2023-04-20 | wflow_publish(all = T) |
| html | 55df7ff | LennartWinkler | 2023-04-12 | Build site. |
| html | b0a3f15 | LennartWinkler | 2023-04-12 | Build site. |
| Rmd | c8bd540 | Lennart Winkler | 2023-04-12 | set up |
| html | c8bd540 | Lennart Winkler | 2023-04-12 | set up |
| html | 899398a | Lennart Winkler | 2022-08-14 | Build site. |
| Rmd | d0d039c | Lennart Winkler | 2022-08-14 | wflow_publish(all = T) |
| html | 39e340c | LennartWinkler | 2022-08-13 | new |
| Rmd | f54f022 | LennartWinkler | 2022-08-13 | wflow_publish(republish = TRUE, all = T) |
| html | f54f022 | LennartWinkler | 2022-08-13 | wflow_publish(republish = TRUE, all = T) |
| Rmd | f89f7c1 | LennartWinkler | 2022-08-10 | Build site. |
| html | f89f7c1 | LennartWinkler | 2022-08-10 | Build site. |
Supplementary material reporting R code for the manuscript ‘Population density affects sexual selection in an insect model’.
Part 1: Analyses on the effect of the treatment on contact rates

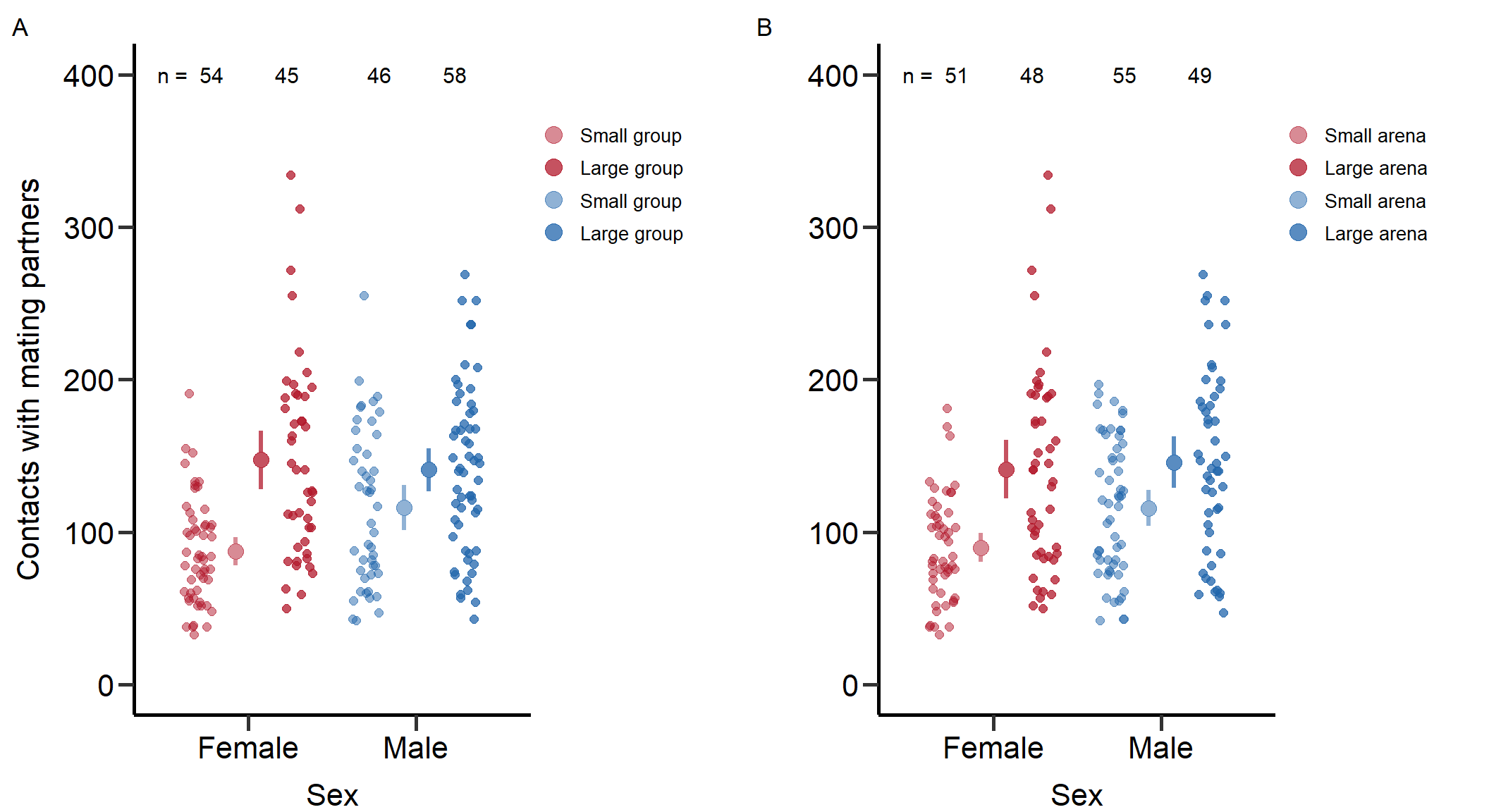

First, we tested for an effect of group and arena size on the number of contacts with potential mating partners.
Load and prepare data
Before we started the analyses, we loaded all necessary packages and data.
rm(list = ls()) # Clear work environment
# Load R-packages ####
list_of_packages=cbind('ggeffects','ggplot2','gridExtra','lme4','lmerTest','readr','dplyr','EnvStats','cowplot','gridGraphics','car','RColorBrewer','boot','data.table','base','ICC','knitr')
lapply(list_of_packages, require, character.only = TRUE)
# Load data set ####
D_data=read_delim("./data/Data_Winkler_et_al_2023_Denstiy.csv",";", escape_double = FALSE, trim_ws = TRUE)
# Set factors and levels for factors
D_data$Week=as.factor(D_data$Week)
D_data$Sex=as.factor(D_data$Sex)
D_data$Gr_size=as.factor(D_data$Gr_size)
D_data$Gr_size <- factor(D_data$Gr_size, levels=c("SG","LG"))
D_data$Arena=as.factor(D_data$Arena)
## Subset data set ####
### Data according to denstiy ####
D_data_0.26=D_data[D_data$Treatment=='D = 0.26',]
D_data_0.52=D_data[D_data$Treatment=='D = 0.52',]
D_data_0.67=D_data[D_data$Treatment=='D = 0.67',]
D_data_1.33=D_data[D_data$Treatment=='D = 1.33',]
### Subset data by sex ####
D_data_m=D_data[D_data$Sex=='M',]
D_data_f=D_data[D_data$Sex=='F',]
### Calculate data relativized within treatment and sex ####
# Small group + large Area
D_data_0.26=D_data[D_data$Treatment=='D = 0.26',]
D_data_0.26$rel_m_RS=NA
D_data_0.26$rel_m_prop_RS=NA
D_data_0.26$rel_m_cMS=NA
D_data_0.26$rel_m_InSuc=NA
D_data_0.26$rel_m_feSuc=NA
D_data_0.26$rel_m_pFec=NA
D_data_0.26$rel_m_PS=NA
D_data_0.26$rel_m_pFec_compl=NA
D_data_0.26$rel_f_RS=NA
D_data_0.26$rel_f_prop_RS=NA
D_data_0.26$rel_f_cMS=NA
D_data_0.26$rel_f_fec_pMate=NA
D_data_0.26$rel_m_RS=D_data_0.26$m_RS/mean(D_data_0.26$m_RS,na.rm=T)
D_data_0.26$rel_m_prop_RS=D_data_0.26$m_prop_RS/mean(D_data_0.26$m_prop_RS,na.rm=T)
D_data_0.26$rel_m_cMS=D_data_0.26$m_cMS/mean(D_data_0.26$m_cMS,na.rm=T)
D_data_0.26$rel_m_InSuc=D_data_0.26$m_InSuc/mean(D_data_0.26$m_InSuc,na.rm=T)
D_data_0.26$rel_m_feSuc=D_data_0.26$m_feSuc/mean(D_data_0.26$m_feSuc,na.rm=T)
D_data_0.26$rel_m_pFec=D_data_0.26$m_pFec/mean(D_data_0.26$m_pFec,na.rm=T)
D_data_0.26$rel_m_PS=D_data_0.26$m_PS/mean(D_data_0.26$m_PS,na.rm=T)
D_data_0.26$rel_m_pFec_compl=D_data_0.26$m_pFec_compl/mean(D_data_0.26$m_pFec_compl,na.rm=T)
D_data_0.26$rel_f_RS=D_data_0.26$f_RS/mean(D_data_0.26$f_RS,na.rm=T)
D_data_0.26$rel_f_prop_RS=D_data_0.26$f_prop_RS/mean(D_data_0.26$f_prop_RS,na.rm=T)
D_data_0.26$rel_f_cMS=D_data_0.26$f_cMS/mean(D_data_0.26$f_cMS,na.rm=T)
D_data_0.26$rel_f_fec_pMate=D_data_0.26$f_fec_pMate/mean(D_data_0.26$f_fec_pMate,na.rm=T)
# Large group + large Area
D_data_0.52=D_data[D_data$Treatment=='D = 0.52',]
#Relativize data
D_data_0.52$rel_m_RS=NA
D_data_0.52$rel_m_prop_RS=NA
D_data_0.52$rel_m_cMS=NA
D_data_0.52$rel_m_InSuc=NA
D_data_0.52$rel_m_feSuc=NA
D_data_0.52$rel_m_pFec=NA
D_data_0.52$rel_m_PS=NA
D_data_0.52$rel_m_pFec_compl=NA
D_data_0.52$rel_f_RS=NA
D_data_0.52$rel_f_prop_RS=NA
D_data_0.52$rel_f_cMS=NA
D_data_0.52$rel_f_fec_pMate=NA
D_data_0.52$rel_m_RS=D_data_0.52$m_RS/mean(D_data_0.52$m_RS,na.rm=T)
D_data_0.52$rel_m_prop_RS=D_data_0.52$m_prop_RS/mean(D_data_0.52$m_prop_RS,na.rm=T)
D_data_0.52$rel_m_cMS=D_data_0.52$m_cMS/mean(D_data_0.52$m_cMS,na.rm=T)
D_data_0.52$rel_m_InSuc=D_data_0.52$m_InSuc/mean(D_data_0.52$m_InSuc,na.rm=T)
D_data_0.52$rel_m_feSuc=D_data_0.52$m_feSuc/mean(D_data_0.52$m_feSuc,na.rm=T)
D_data_0.52$rel_m_pFec=D_data_0.52$m_pFec/mean(D_data_0.52$m_pFec,na.rm=T)
D_data_0.52$rel_m_PS=D_data_0.52$m_PS/mean(D_data_0.52$m_PS,na.rm=T)
D_data_0.52$rel_m_pFec_compl=D_data_0.52$m_pFec_compl/mean(D_data_0.52$m_pFec_compl,na.rm=T)
D_data_0.52$rel_f_RS=D_data_0.52$f_RS/mean(D_data_0.52$f_RS,na.rm=T)
D_data_0.52$rel_f_prop_RS=D_data_0.52$f_prop_RS/mean(D_data_0.52$f_prop_RS,na.rm=T)
D_data_0.52$rel_f_cMS=D_data_0.52$f_cMS/mean(D_data_0.52$f_cMS,na.rm=T)
D_data_0.52$rel_f_fec_pMate=D_data_0.52$f_fec_pMate/mean(D_data_0.52$f_fec_pMate,na.rm=T)
# Small group + small Area
D_data_0.67=D_data[D_data$Treatment=='D = 0.67',]
#Relativize data
D_data_0.67$rel_m_RS=NA
D_data_0.67$rel_m_prop_RS=NA
D_data_0.67$rel_m_cMS=NA
D_data_0.67$rel_m_InSuc=NA
D_data_0.67$rel_m_feSuc=NA
D_data_0.67$rel_m_pFec=NA
D_data_0.67$rel_m_PS=NA
D_data_0.67$rel_m_pFec_compl=NA
D_data_0.67$rel_f_RS=NA
D_data_0.67$rel_f_prop_RS=NA
D_data_0.67$rel_f_cMS=NA
D_data_0.67$rel_f_fec_pMate=NA
D_data_0.67$rel_m_RS=D_data_0.67$m_RS/mean(D_data_0.67$m_RS,na.rm=T)
D_data_0.67$rel_m_prop_RS=D_data_0.67$m_prop_RS/mean(D_data_0.67$m_prop_RS,na.rm=T)
D_data_0.67$rel_m_cMS=D_data_0.67$m_cMS/mean(D_data_0.67$m_cMS,na.rm=T)
D_data_0.67$rel_m_InSuc=D_data_0.67$m_InSuc/mean(D_data_0.67$m_InSuc,na.rm=T)
D_data_0.67$rel_m_feSuc=D_data_0.67$m_feSuc/mean(D_data_0.67$m_feSuc,na.rm=T)
D_data_0.67$rel_m_pFec=D_data_0.67$m_pFec/mean(D_data_0.67$m_pFec,na.rm=T)
D_data_0.67$rel_m_PS=D_data_0.67$m_PS/mean(D_data_0.67$m_PS,na.rm=T)
D_data_0.67$rel_m_pFec_compl=D_data_0.67$m_pFec_compl/mean(D_data_0.67$m_pFec_compl,na.rm=T)
D_data_0.67$rel_f_RS=D_data_0.67$f_RS/mean(D_data_0.67$f_RS,na.rm=T)
D_data_0.67$rel_f_prop_RS=D_data_0.67$f_prop_RS/mean(D_data_0.67$f_prop_RS,na.rm=T)
D_data_0.67$rel_f_cMS=D_data_0.67$f_cMS/mean(D_data_0.67$f_cMS,na.rm=T)
D_data_0.67$rel_f_fec_pMate=D_data_0.67$f_fec_pMate/mean(D_data_0.67$f_fec_pMate,na.rm=T)
# Large group + small Area
D_data_1.33=D_data[D_data$Treatment=='D = 1.33',]
#Relativize data
D_data_1.33$rel_m_RS=NA
D_data_1.33$rel_m_prop_RS=NA
D_data_1.33$rel_m_cMS=NA
D_data_1.33$rel_m_InSuc=NA
D_data_1.33$rel_m_feSuc=NA
D_data_1.33$rel_m_pFec=NA
D_data_1.33$rel_m_PS=NA
D_data_1.33$rel_m_pFec_compl=NA
D_data_1.33$rel_f_RS=NA
D_data_1.33$rel_f_prop_RS=NA
D_data_1.33$rel_f_cMS=NA
D_data_1.33$rel_f_fec_pMate=NA
D_data_1.33$rel_m_RS=D_data_1.33$m_RS/mean(D_data_1.33$m_RS,na.rm=T)
D_data_1.33$rel_m_prop_RS=D_data_1.33$m_prop_RS/mean(D_data_1.33$m_prop_RS,na.rm=T)
D_data_1.33$rel_m_cMS=D_data_1.33$m_cMS/mean(D_data_1.33$m_cMS,na.rm=T)
D_data_1.33$rel_m_InSuc=D_data_1.33$m_InSuc/mean(D_data_1.33$m_InSuc,na.rm=T)
D_data_1.33$rel_m_feSuc=D_data_1.33$m_feSuc/mean(D_data_1.33$m_feSuc,na.rm=T)
D_data_1.33$rel_m_pFec=D_data_1.33$m_pFec/mean(D_data_1.33$m_pFec,na.rm=T)
D_data_1.33$rel_m_PS=D_data_1.33$m_PS/mean(D_data_1.33$m_PS,na.rm=T)
D_data_1.33$rel_m_pFec_compl=D_data_1.33$m_pFec_compl/mean(D_data_1.33$m_pFec_compl,na.rm=T)
D_data_1.33$rel_f_RS=D_data_1.33$f_RS/mean(D_data_1.33$f_RS,na.rm=T)
D_data_1.33$rel_f_prop_RS=D_data_1.33$f_prop_RS/mean(D_data_1.33$f_prop_RS,na.rm=T)
D_data_1.33$rel_f_cMS=D_data_1.33$f_cMS/mean(D_data_1.33$f_cMS,na.rm=T)
D_data_1.33$rel_f_fec_pMate=D_data_1.33$f_fec_pMate/mean(D_data_1.33$f_fec_pMate,na.rm=T)
### Reduce treatments to arena and population size ####
# Arena size
D_data_Large_arena=rbind(D_data_0.26,D_data_0.52)
D_data_Small_arena=rbind(D_data_0.67,D_data_1.33)
# Population size
D_data_Small_pop=rbind(D_data_0.26,D_data_0.67)
D_data_Large_pop=rbind(D_data_0.52,D_data_1.33)
## Set figure schemes ####
# Set color-sets for figures
colpal=brewer.pal(4, 'Dark2')
colpal2=c("#b2182b","#2166AC")
colpal3=brewer.pal(4, 'Paired')
# Set theme for ggplot2 figures
fig_theme=theme(panel.border = element_blank(),
plot.margin = margin(0,2.2,0,0.2,"cm"),
plot.title = element_text(hjust = 0.5),
panel.background = element_blank(),
legend.key=element_blank(),
panel.grid.major = element_blank(),
panel.grid.minor = element_blank(),
legend.position = c(1.25, 0.8),
plot.tag.position=c(0.01,0.98),
legend.title = element_blank(),
legend.text = element_text(colour="black", size=10),
axis.line.x = element_line(colour = "black", size = 1),
axis.line.y = element_line(colour = "black", size = 1),
axis.text.x = element_text(face="plain", color="black", size=16, angle=0),
axis.text.y = element_text(face="plain", color="black", size=16, angle=0),
axis.title.x = element_text(size=16,face="plain", margin = margin(r=0,10,0,0)),
axis.title.y = element_text(size=16,face="plain", margin = margin(r=10,0,0,0)),
axis.ticks = element_line(size = 1),
axis.ticks.length = unit(.3, "cm"))
## Create customized functions for analysis ####
# Create function to calculate standard error and upper/lower standard deviation
standard_error <- function(x) sd(x,na.rm=T) / sqrt(length(na.exclude(x)))
upper_CI <- function(x) mean(x,na.rm=T)+((standard_error(x))*qnorm(0.975))
lower_CI <- function(x) mean(x,na.rm=T)-((standard_error(x))*qnorm(0.975))
upper_SD <- function(x) mean(x,na.rm=T)+(sd(x)/2)
lower_SD <- function(x) mean(x,na.rm=T)-(sd(x)/2)Effect of density on contact rates of males
First, we calculated means and SE for all treatments: Mean number of contacts in small groups (SE) = 116.04 (7.56)
mean(D_data_m$N_contact_WT[D_data_m$Gr_size=='SG'],na.rm=T)
standard_error(D_data_m$N_contact_WT[D_data_m$Gr_size=='SG'])Mean number of contacts in large groups (SE) = 140.83 (7.23)
mean(D_data_m$N_contact_WT[D_data_m$Gr_size=='LG'],na.rm=T)
standard_error(D_data_m$N_contact_WT[D_data_m$Gr_size=='LG'])Mean number of contacts in large arena size (SE) = 115.8 (6.06)
mean(D_data_m$N_contact_WT[D_data_m$Arena=='Large'],na.rm=T)
standard_error(D_data_m$N_contact_WT[D_data_m$Arena=='Large'])Mean number of contacts in small arena size (SE) = 145.65 (8.62)
mean(D_data_m$N_contact_WT[D_data_m$Arena=='Small'],na.rm=T)
standard_error(D_data_m$N_contact_WT[D_data_m$Arena=='Small'])GLM for the effect of treatment on the number of contacts with potential partners:
mod1=glm((as.numeric(N_contact_WT))~Gr_size*Arena,data=D_data_m,family = quasipoisson) # GLM for treatment effect on contact rates of males
summary(mod1)
Call:
glm(formula = (as.numeric(N_contact_WT)) ~ Gr_size * Arena, family = quasipoisson,
data = D_data_m)
Deviance Residuals:
Min 1Q Median 3Q Max
-9.0513 -3.8054 -0.1636 3.2374 9.2217
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 4.5207 0.1025 44.121 < 2e-16 ***
Gr_sizeLG 0.3426 0.1215 2.821 0.00578 **
ArenaSmall 0.3817 0.1265 3.017 0.00324 **
Gr_sizeLG:ArenaSmall -0.1817 0.1599 -1.136 0.25873
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for quasipoisson family taken to be 19.29616)
Null deviance: 2401.2 on 103 degrees of freedom
Residual deviance: 2017.0 on 100 degrees of freedom
AIC: NA
Number of Fisher Scoring iterations: 4Anova(mod1,type=2) # Compute p-values via type 2 ANOVAAnalysis of Deviance Table (Type II tests)
Response: (as.numeric(N_contact_WT))
LR Chisq Df Pr(>Chisq)
Gr_size 9.4143 1 0.0021530 **
Arena 12.2650 1 0.0004615 ***
Gr_size:Arena 1.3004 1 0.2541364
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1FDR corrected p-values:
tab1=as.data.frame(round(p.adjust(c(0.0021530,0.0004615,0.2541364), method = 'fdr'),digits=3),row.names=cbind('Group size','Arena size', 'Interaction'))
colnames(tab1)<-cbind('P-value')
tab1 P-value
Group size 0.003
Arena size 0.001
Interaction 0.254Effect of density on contact rates of females
We calculated means and SE for all treatments: Mean number of contacts in small groups (SE) = 87.52 (4.7)
mean(D_data_f$N_contact_WT[D_data_f$Gr_size=='SG'],na.rm=T)
standard_error(D_data_f$N_contact_WT[D_data_f$Gr_size=='SG'])Mean number of contacts in large groups (SE) = 147.27 (9.79)
mean(D_data_f$N_contact_WT[D_data_f$Gr_size=='LG'],na.rm=T)
standard_error(D_data_f$N_contact_WT[D_data_f$Gr_size=='LG'])Mean number of contacts in large arena size (SE) = 89.76 (4.85)
mean(D_data_f$N_contact_WT[D_data_f$Arena=='Large'],na.rm=T)
standard_error(D_data_f$N_contact_WT[D_data_f$Arena=='Large'])Mean number of contacts in small arena size (SE) = 141.15 (9.77)
mean(D_data_f$N_contact_WT[D_data_f$Arena=='Small'],na.rm=T)
standard_error(D_data_f$N_contact_WT[D_data_f$Arena=='Small'])GLM for the effect of treatment on the number of contacts with potential partners:
mod2=glm((as.numeric(N_contact_WT))~Gr_size*Arena,data=D_data_f,family = quasipoisson) # GLM for treatment effect on contact rates of females
summary(mod2)
Call:
glm(formula = (as.numeric(N_contact_WT)) ~ Gr_size * Arena, family = quasipoisson,
data = D_data_f)
Deviance Residuals:
Min 1Q Median 3Q Max
-11.168 -2.868 -0.245 2.183 10.666
Coefficients:
Estimate Std. Error t value Pr(>|t|)
(Intercept) 4.35871 0.07999 54.489 < 2e-16 ***
Gr_sizeLG 0.33553 0.11876 2.825 0.00576 **
ArenaSmall 0.25776 0.11658 2.211 0.02944 *
Gr_sizeLG:ArenaSmall 0.21279 0.15752 1.351 0.17996
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for quasipoisson family taken to be 16.00349)
Null deviance: 2705.7 on 98 degrees of freedom
Residual deviance: 1535.2 on 95 degrees of freedom
AIC: NA
Number of Fisher Scoring iterations: 4Anova(mod2,type=2) # Compute p-values via type 2 ANOVAAnalysis of Deviance Table (Type II tests)
Response: (as.numeric(N_contact_WT))
LR Chisq Df Pr(>Chisq)
Gr_size 35.593 1 2.432e-09 ***
Arena 23.774 1 1.084e-06 ***
Gr_size:Arena 1.836 1 0.1754
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1FDR corrected p-values:
tab2=as.data.frame(round(p.adjust(c(2.432e-09, 1.084e-06,0.1754), method = 'fdr'),digits=3),row.names=cbind('Group size','Arena size', 'Interaction'))
colnames(tab2)<-cbind('P-value')
tab2 P-value
Group size 0.000
Arena size 0.000
Interaction 0.175Plot contact rates (Figure S1)
Here we plot the contact rates with potential partners per treatment and sex.
## Plot contact rates (Figure S1) ####
# Create factor for treatment categories
D_data$TreatCgroup <- factor(paste(D_data$Sex,D_data$Gr_size, sep=" "), levels = c("F SG", "F LG", "M SG",'M LG'))
p1=ggplot(D_data, aes(x=Sex, y=as.numeric(N_contact_WT),fill=TreatCgroup, col=TreatCgroup,alpha=TreatCgroup)) +
geom_point(position=position_jitterdodge(jitter.width=0.5,jitter.height = 0,dodge.width=1.2),shape=19, size = 2)+
stat_summary(fun.min =lower_CI ,
fun.max = upper_CI ,fun = mean,
position=position_dodge2(0.3),col=c("#b2182b","#b2182b","#2166AC","#2166AC"),alpha=c(0.5,0.75,0.5,0.75),show.legend = F, linewidth = 1.15)+
stat_summary(fun = mean,
position=position_dodge2(0.3), size = 1,col=c("white","white","white","white"),alpha=c(1,1,1,1),show.legend = F, stroke = 0,linewidth = 1.2)+
stat_summary(fun = mean,
position=position_dodge2(0.3), size = 1,col=c("#b2182b","#b2182b","#2166AC","#2166AC"),alpha=c(0.5,0.75,0.5,0.75),show.legend = F, stroke = 0,linewidth = 1.2)+
scale_color_manual(values=c(colpal2[1],colpal2[1],colpal2[2],colpal2[2]),name = "Treatment", labels = c('Small group','Large group','Small group','Large group'))+
scale_fill_manual(values=c(colpal2[1],colpal2[1],colpal2[2],colpal2[2]),name = "Treatment", labels = c('Small group','Large group','Small group','Large group'))+
scale_alpha_manual(values=c(0.5,0.75,0.5,0.75),name = "Treatment", labels = c('Small group','Large group','Small group','Large group'))+
xlab('Sex')+ylab("Contacts with mating partners")+ggtitle('')+ theme(plot.title = element_text(hjust = 0.5))+
scale_x_discrete(labels = c('Female','Male'),drop=FALSE)+ylim(0,400)+labs(tag = "A")+
annotate("text",label='n =',x=0.55,y=400,size=4)+
annotate("text",label='54',x=0.78,y=400,size=4)+
annotate("text",label='45',x=1.23,y=400,size=4)+
annotate("text",label='46',x=1.78,y=400,size=4)+
annotate("text",label='58',x=2.23,y=400,size=4)+
guides(colour = guide_legend(override.aes = list(size=4)))+
fig_theme+theme( legend.position = c(1.2, 0.8))
# Create factor for treatment categories
D_data$TreatCarena <- factor(paste(D_data$Sex,D_data$Arena, sep=" "), levels = c("F Large", "F Small", "M Large",'M Small'))
p2=ggplot(D_data, aes(x=Sex, y=as.numeric(N_contact_WT),fill=TreatCarena, col=TreatCarena,alpha=TreatCarena)) +
geom_point(position=position_jitterdodge(jitter.width=0.5,jitter.height = 0,dodge.width=1.2),shape=19, size = 2)+
stat_summary(fun.min =lower_CI ,
fun.max = upper_CI ,fun = mean,
position=position_dodge2(0.3),col=c("#b2182b","#b2182b","#2166AC","#2166AC"),alpha=c(0.5,0.75,0.5,0.75),show.legend = F, linewidth = 1.15)+
stat_summary(fun = mean,
position=position_dodge2(0.3), size = 1,col=c("white","white","white","white"),alpha=c(1,1,1,1),show.legend = F, stroke = 0,linewidth = 1.2)+
stat_summary(fun = mean,
position=position_dodge2(0.3), size = 1,col=c("#b2182b","#b2182b","#2166AC","#2166AC"),alpha=c(0.5,0.75,0.5,0.75),show.legend = F, stroke = 0,linewidth = 1.2)+
scale_color_manual(values=c(colpal2[1],colpal2[1],colpal2[2],colpal2[2]),name = "Treatment", labels = c('Small arena','Large arena','Small arena','Large arena'))+
scale_fill_manual(values=c(colpal2[1],colpal2[1],colpal2[2],colpal2[2]),name = "Treatment", labels = c('Small arena','Large arena','Small arena','Large arena'))+
scale_alpha_manual(values=c(0.5,0.75,0.5,0.75),name = "Treatment", labels = c('Small arena','Large arena','Small arena','Large arena'))+
xlab('Sex')+ylab("")+ggtitle('')+ theme(plot.title = element_text(hjust = 0.5))+
scale_x_discrete(labels = c('Female','Male'),drop=FALSE)+ylim(0,400)+labs(tag = "B")+
annotate("text",label='n =',x=0.55,y=400,size=4)+
annotate("text",label='51',x=0.78,y=400,size=4)+
annotate("text",label='48',x=1.23,y=400,size=4)+
annotate("text",label='55',x=1.78,y=400,size=4)+
annotate("text",label='49',x=2.23,y=400,size=4)+
guides(colour = guide_legend(override.aes = list(size=4)))+
fig_theme+theme( legend.position = c(1.2, 0.8))
# Arrange figures
Figure_S1<-grid.arrange(grobs = list(p1+theme(plot.margin = unit(c(0.2,4,0,0.3), "cm")),p2+theme(plot.margin = unit(c(0.2,4,0,0.3), "cm"))), nrow = 1,ncol=2, widths=c(2.3, 2.3))
Figure S1: Total number of contacts with potential mating partners for males and females under low and high density manipulation via group (left) and arena size (right). Bars indicate means and 95% CI.
Figure_S1<-plot_grid(Figure_S1, ncol=1, rel_heights=c(0.1, 1))
sessionInfo()R version 4.2.0 (2022-04-22 ucrt)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 19045)
Matrix products: default
locale:
[1] LC_COLLATE=German_Germany.utf8 LC_CTYPE=German_Germany.utf8
[3] LC_MONETARY=German_Germany.utf8 LC_NUMERIC=C
[5] LC_TIME=German_Germany.utf8
attached base packages:
[1] grid stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] knitr_1.42 ICC_2.4.0 data.table_1.14.8 boot_1.3-28
[5] RColorBrewer_1.1-3 car_3.1-1 carData_3.0-5 gridGraphics_0.5-1
[9] cowplot_1.1.1 EnvStats_2.7.0 dplyr_1.1.0 readr_2.1.4
[13] lmerTest_3.1-3 lme4_1.1-31 Matrix_1.5-3 gridExtra_2.3
[17] ggplot2_3.4.1 ggeffects_1.2.0 workflowr_1.7.0
loaded via a namespace (and not attached):
[1] httr_1.4.5 sass_0.4.5 bit64_4.0.5
[4] vroom_1.6.1 jsonlite_1.8.4 splines_4.2.0
[7] bslib_0.4.2 getPass_0.2-2 highr_0.10
[10] yaml_2.3.7 numDeriv_2016.8-1.1 pillar_1.8.1
[13] lattice_0.20-45 glue_1.6.2 digest_0.6.31
[16] promises_1.2.0.1 minqa_1.2.5 colorspace_2.1-0
[19] htmltools_0.5.4 httpuv_1.6.9 pkgconfig_2.0.3
[22] scales_1.2.1 processx_3.8.0 whisker_0.4.1
[25] later_1.3.0 tzdb_0.3.0 git2r_0.31.0
[28] tibble_3.2.0 generics_0.1.3 farver_2.1.1
[31] ellipsis_0.3.2 cachem_1.0.7 withr_2.5.0
[34] cli_3.6.1 magrittr_2.0.3 crayon_1.5.2
[37] evaluate_0.20 ps_1.7.2 fs_1.6.1
[40] fansi_1.0.4 nlme_3.1-157 MASS_7.3-56
[43] tools_4.2.0 hms_1.1.2 lifecycle_1.0.3
[46] stringr_1.5.0 munsell_0.5.0 callr_3.7.3
[49] compiler_4.2.0 jquerylib_0.1.4 rlang_1.0.6
[52] nloptr_2.0.3 rstudioapi_0.14 labeling_0.4.2
[55] rmarkdown_2.20 gtable_0.3.1 abind_1.4-5
[58] R6_2.5.1 fastmap_1.1.1 bit_4.0.5
[61] utf8_1.2.3 rprojroot_2.0.3 stringi_1.7.12
[64] parallel_4.2.0 Rcpp_1.0.10 vctrs_0.5.2
[67] tidyselect_1.2.0 xfun_0.37
